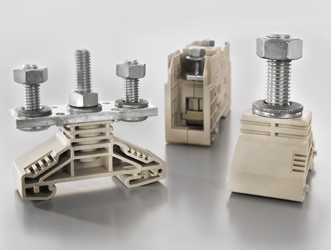

Whether it is the supply of high power levels to engines, quick and safe coupling of carriages, energy distribution in the carriages and parts thereof, traffic engineering in general, and high-speed trains especially, all pose real challenges for connectivity. For reliable power transfer in these challenging conditions, we offer series WF, WFF and ST 400 stud terminals. With crimped cable lugs, the conductors are laid on the threaded pins and securely connected together by tightening the hex nut to the required torque. The robust processing guarantees the ultimate in safety.

In all applications where reliable power transfer is key, our stud terminals are the safe solution.

Clever operating concept:

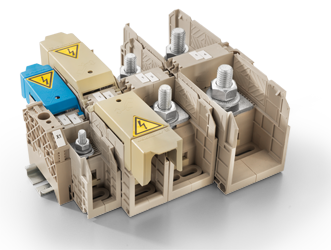

The WF and WFF stud terminal series are available as single and two-stud terminals. The option of a built-in folding hinged hood gives the two-stud terminals in the WFF series a particularly high level of safety.

Robust and high performance:

The ST 400 stud terminals, made of glass-fibre reinforced, flame resistant artificial resin for operating voltages of up to 4 kV, are specially designed for use on rail vehicles and tested to meet railway standards. They are perfect for applications with high requirements in terms of vibration and shock resistance.

Flexibility

• Designed for voltage ranges up to 4,000 V and currents up to 415 A
• imple to use: all that is required is one torque wrench
• Extensive portfolio of one and two stud terminals

Time saving

• Extensive accessories
• Quick installation

Space saving

• Up to four cable lugs can be connected for each stud

Safety

• Safe operation is guaranteed thanks to cover profiles or the snap-on and screwable hinged hoods
• All materials comply with the fire safety regulations found in DIN EN 45545
• All stud terminals are tested in line with the railway standards and made of self-extinguishing material
