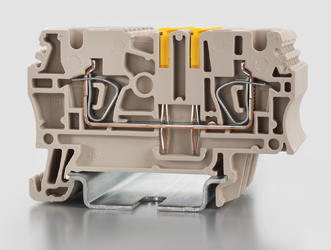

Whether in machine construction, the automotive industry or railway and shipping: wherever there is a requirement for a particularly vibration-resistant contact, tension clamp technology proves extremely reliable. At the same time, our modular terminal blocks with proven tension clamp technology are perfect for compact yet manageable cabinet construction. The wide range with numerous additional functions and pluggable terminal blocks (WeiCoS), the wide clamping range and up to two cross-connection channels make the Z-series perfectly
adaptable to all requirements. Pluggable standard cross-connections enable flexible potential distribution.

Exceptionally practical:

The Z-series has an impressive, practical design and comes in two variants: standard and roof. Our standard models cover wire cross-sections from 0.05 to 35 mm2. Modular terminal blocks for wire cross-sections from 0.13 to 16 mm2 are available as roof variants.. The striking shape of the roof style gives a reduction in length of up to 36% compared to standard modular terminal blocks.

Simple and clear:

Despite their compact width of just 5 mm (2 connections) or 10 mm (4 connections), our modular block terminals guarantee absolute clarity and ease of handling thanks to the top-entry conductor feeds. This means the wiring is clear even in terminal boxes with restricted space.

Flexibility

• Pluggable standard cross-connections for flexible potential distribution
• Secure interlocking of all plug-in connectors (WeiCoS)

Time saving

• Integrated test point

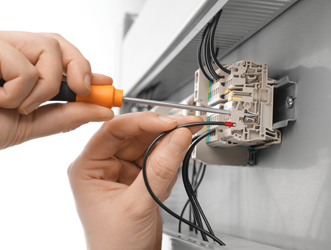

• Simple handling thanks to parallel alignment of conductor entry
• Can be wired without special tools

Safety

• shock and vibration proof
• Separation of electrical and mechanical functions
• No-maintenance connection for a safe, gas-tight contacting
• The tension clamp is made of steel with an externally-sprung contact for optimum contact force
• Current bar made of copper for low voltage drops
