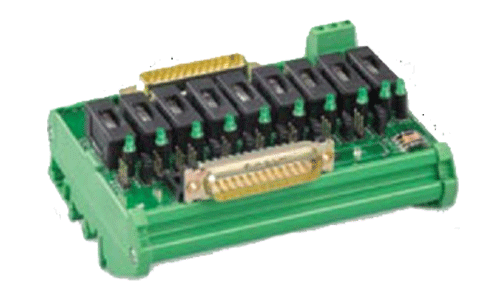

Analog Input Field Interface Module with Fuse & 2Wire/4Wire Selection (Redundant)
Applications :
Analog Field Interface Modules with option of fuse in each path and provision of selection of 2 Wire/4 Wire using DIP switches used for Interfacing PLC/DCS Analog Inputs with field or field devices such as 2/4 wire current transmitters, etc. Accepts one input (4-20mA) and delivers two outputs 1-5V to system
TECHNICAL DATA
Input Data (FIELD SIDE):
| Field Signal: | 4-20mA 2 Wire / 4 Wire Single O/P
|
| Protection : | Fuse in each path |
| Indication | LED |
| Termination | Screw Type |
Output Data (SYSTEM SIDE)
| System Signal | 4-20mA / 1-5V / 0-10V Dual O/P |
| Connection | 2/4 Wire selection thru DIP Sw |
| Isolation | 3 Way |
| Termination | Plug In Connector (D Type) |
Component Specification:
| Fuse Link | Glass Fuse (5 x 20mm) |
| Fuse Holder | Vertical / Horizontal |
| Terminals | Screw Type (2.5Sq mm) |
| PCB | Glass Epoxy Double Sided |
General Data
| No. of Channels | 8 |
| Test Voltage | 500V in each Channel |
| Mounting | Universal Dinrail Mountable |
| Identification Tag | Optional (On request) |
Standards & Approval

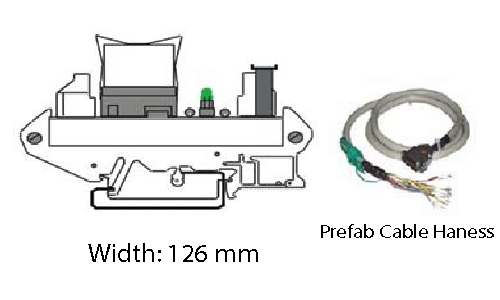

| *PCB: Type tested STQC, IEC 61373, |
| *ANSI IPC 319 MIL 275B |
| *Terminals: UL/CE & CSA |
| *Ambient Opt Temp: | Max 60 Deg.C |
| *Relative Humidity: | Max 90% (Non-Condensing) |
| TYPE OF CARD |
Length |
Width |
| BRM8-AI-(RED)-SPD-D25(V-I) 162 X 126 BRM8- | <
| AI-(RED)-SPD-D25(I-V) 154 X 126 |
