P3 2CO

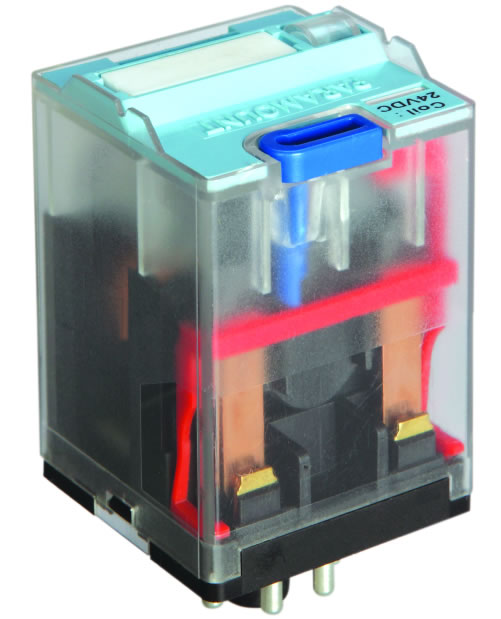

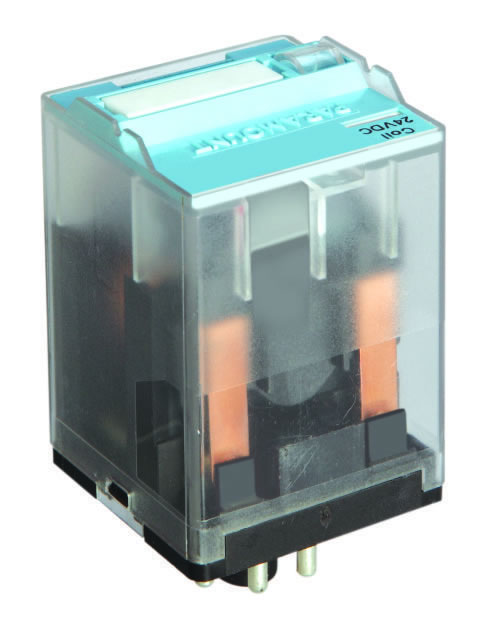

| Series P3-2 | Industrial Plug In Relays | |
|---|---|---|
| Mounting Style | : | Plug In Type |
| Contact Form | : | 2 Change over Contact |
| Contact Rating | : | 10 Amps @ 250VAC 1 |
| : | 10 Amps @ 30VDC 1 |
| Series P3-2A | Special Version Relays | |
|---|---|---|
| Mounting Style | : | Plug In Type |
| Contact Form | : | 2 NO - Normally Open contact |
| Contact Rating | : | 10 Amps @ 250VAC 1 |
| : | 10 Amps @ 30VDC 1 |
| Series P3-X | Special Version Relays | |
|---|---|---|
| Mounting Style | : | Plug In Type |
| Contact Form | : | 1 NO + 1NC contact |
| Contact Rating | : | 10 Amps @ 250VAC 1 |
| : | 10 Amps @ 30VDC 1 |
| Series P3-Y | Special Version Relays | |
|---|---|---|
| Mounting Style | : | Plug In Type |
| Contact Form | : | 1 NO Double Break Contacts |
| Contact Rating | : | 10 Amps @ 250VAC 1 |
| : | 10 Amps @ 30VDC 1 |
| Series P3-2-M | DC Switching Relays | |
|---|---|---|
| Mounting Style | : | Plug In Type |
| Contact Form | : | 2 Change Over Contact |
| Contact Rating | : | 10 Amps @ 250VAC 1 / 30VDC 1 |
| : | 5 Amps @ 220VDC 1 | |
| : | 3 Amps @ 220VDC 13 |
| Series P3-Y....L | Magnetically Latched Relays | |
|---|---|---|
| Mounting Style | : | Plug In Type |
| Contact Form | : | 1 NO Double Break |
| Contact Rating | : | 10 Amps @ 250VAC 1 |
| : | 10 Amps @ 30VDC 1 | |
| : | 7 Amps @ 220VDC 13 |
| Series P3-2...LM | Magnetically Latched DC Switching Relays | |
|---|---|---|
| Mounting Style | : | Plug In Type |
| Contact Form | : | 2 Change Over Contact |
| Contact Rating | : | 10 Amps @ 250VAC 1 |
| : | 10 Amps @ 30VDC 1 |
| Series P3-2A...LM | Magnetically Latched DC Switching Relays | |
|---|---|---|
| Mounting Style | : | Plug In Type |
| Contact Form | : | 2 NO Normally Open Contact |
| Contact Rating | : | 10 Amps @ 250VAC 1 |
| : | 10 Amps @ 30VDC 1 |
| Series P3-X...LM | Magnetically Latched DC Switching Relays | |
|---|---|---|
| Mounting Style | : | Plug In Type |
| Contact Form | : | 1 NO + 1NC Contact |
| Contact Rating | : | 10 Amps @ 250VAC 1 |
| : | 10 Amps @ 30VDC 1 |
| Series P3-Y...LM | Magnetically Latched DC Switching Relays | |
|---|---|---|
| Mounting Style | : | Plug In Type |
| Contact Form | : | 1 NO Double Break |
| Contact Rating | : | 10 Amps @ 250VAC 1 |
| : | 10 Amps @ 30VDC 1 |
| Series P3-3T | Twin / Bifurcated Contact Relays | |
|---|---|---|
| Mounting Style | : | Plug In Type |
| Contact Form | : | 3 Change over |
| Contact Rating | : | 6 Amps @ 250VAC 1 |
| : | 6 Amps @ 30VDC 1 |
| Series P3-3...H | High Rating / Long Life Relays | |
|---|---|---|
| Mounting Style | : | Plug In Type |
| Contact Form | : | 2 Change over |
| Contact Rating | : | 10 Amps @ 250VAC 1 |
| : | 10 Amps @ 30VDC 1 |
