CNC Specific I/O Interface Module
Applications :

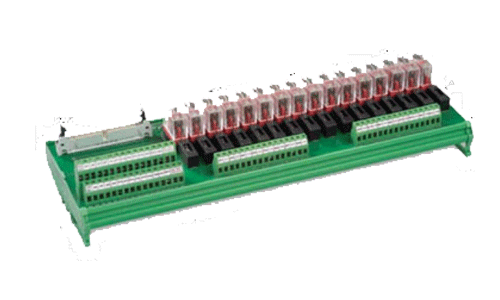

Passive Cum Relay Interface Module with 24I/p and 16 O/p with option of Fuse in each contact used to interface with Fanuc/Siemens I/O module to field or field devices like solenoid valve, Contractors and etc. Outputs are galvanically isolated
TECHNICAL DATA
Input Data (FIELD SIDE):
| Operating Voltage | 24VDC |
| Input Current/Chnl | 25mA @ 24VDC |
| Protection (Coil) | Free wheeling diode |
| Termination | Plug In, FRC 50 Pins |
Output Data (SYSTEM SIDE)
| Contact Type | SPDT (1C/O) |
| Max Output Current | 5A @230VAC/30VDC |
| Output Wiring | Wetted (Powered Contacts) |
| Indication/Chnl | LED for outputs |
| Termination | Screw type Terminal Blocks (24 Field I/P and 16 Relay O/P) |
Component Specification:
| Relay | 24VDC Coil, 2 C/o |
| Socket | 1C/o PCB Solderable Type |
| Terminals | Screw Type (2.5Sq mm) |
| PCB | Glass Epoxy Double Sided |
General Data
| No. of Channels | 16 |
| Test Voltage | 2.5kV, 50Hz, 1M |

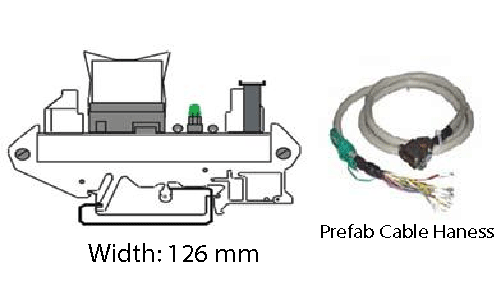

| Mounting | Universal Dinrail Mountable |
| Identification Tag | Optional (On request) |
Standards & Approval
| *PCB: Type tested STQC, IEC 61373, |
| *ANSI IPC 319 MIL 275B |
| *Terminals: UL/CE & CSA |
| *Ambient Opt Temp: | Max 60 Deg.C |
| *Relative Humidity: | Max 90% (Non-Condensing) |
| TYPE OF CARD |
Length |
Width |
| BRM16-1B(F)-SF | 310 | X | 126 |
| BRM16-1B-SF | 310 | X | 92 |
| BRM16-1NB(F)-SF | 310 | X | 126 |
| BRM16-1NB-SF | 310 | X | 92 |
