2 Channel Cranking Relay
Applications :
The Dual Channel Cranking Relay Modules can be used in high current switching required for Engine Start Stop Application.
TECHNICAL DATA
Input Data
| Operating Voltage | 12VDC |
| Input Current/Chnl | 25mA @ 24VDC |
| Protection (Coil) | Free Wheeling Diode |
| Indication/chhl | LED |
Output Data
| Contact Type | SPST (1NO) |
| Max Current : | 70A |
| Output | Potential Free |
| Max.Voltage | 250VAC/DC |
Component Specification:
| Relay | 530-1A-12TO |
| Terminals | Screw Type (2.5Sq mm) |
| PCB | Glass Epoxy Double Sided |
General Data
| No. of Channels | 2 |
| Test Voltage | 1.5kV, 50Hz, 1M |
| Mounting | Universal Rail Mountable |
| Identification Tag | Optional (On request) |
Standards & Approval
| *PCB: Type tested STQC, IEC 61373, |
| *ANSI IPC 319 MIL 275B |
| *Terminals: UL/CE & CSA |
| *Ambient Opt Temp: | Max 60 Deg.C |
| *Relative Humidity: | Max 90% (Non-Condensing) |
| No. of channel |
Length |
Width |

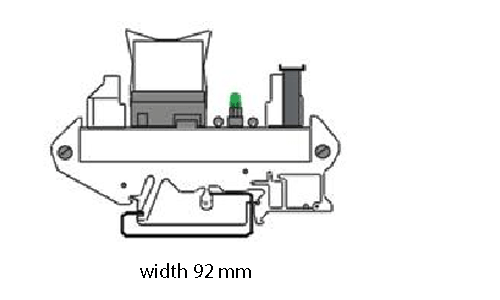

| 2 Channel | 90 | X | 92 |
HOW TO ORDER?BRM 2 - 12 D - 53 GNS
| 2 No. Of Channels | 2 |
| 12 Coil Voltage | 12 |
| D Signal | DC |
