Passive Modules - D Sub Connector to Terminals
Applications :

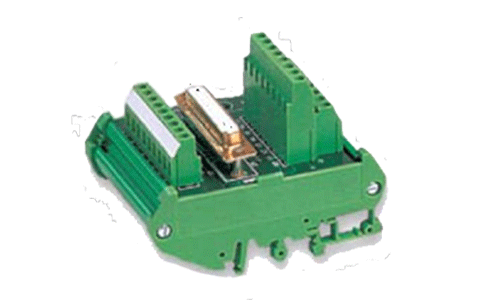

Passive Interfcae Modules are used to convert the conventional Wiring. It consists of D type male or female connector at one side and Screw type Terminals at the other side.
TECHNICAL DATA
Input Data
| Connector Type | D Type Plug In |
| O/P Termination | Screw Type |
| Operating Voltage | 60VDC, MAX |
| Current Per Channel | 1Amp Max |
| Indication | LED (Optional) |
General Data
| No of Pins | 15/25/37/50 |
| Identification Tag | Optional (On request) |
| Mounting | Universal Rail Mountable |
| Test Voltage | 500V Between Each Channel |
Component Specification:
| Terminal | Screw Type (2.5Sq mm) |
| PCB | Glass Epoxy Double Sided |
Standards & Approval
| *PCB: Type tested STQC, IEC 61373, |
| *ANSI IPC 319 MIL 275B |
| *Terminals: UL/CE & CSA |
| *Ambient Opt Temp: | Max 60 Deg.C |
| *Relative Humidity: | Max 90% (Non-Condensing) |
| No. Of Channels |
Length |
Width |

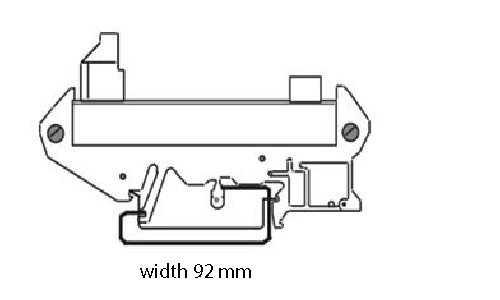

| BRMD-15M/F | 50 | X | 92 |
| BRMD-25M/F | 64 | X | 92 |
| BRMD-37M/F | 88 | X | 92 |
| BRMD-50M/F | 150 | X | 92 |
| How to order |
BRM 8 – 24AI – 100AO-SSR |
| Connector Type | D Type |
| No Pins Of | 250 VAC |
| Connector Type | Male - Female |
| X LEDs | |
